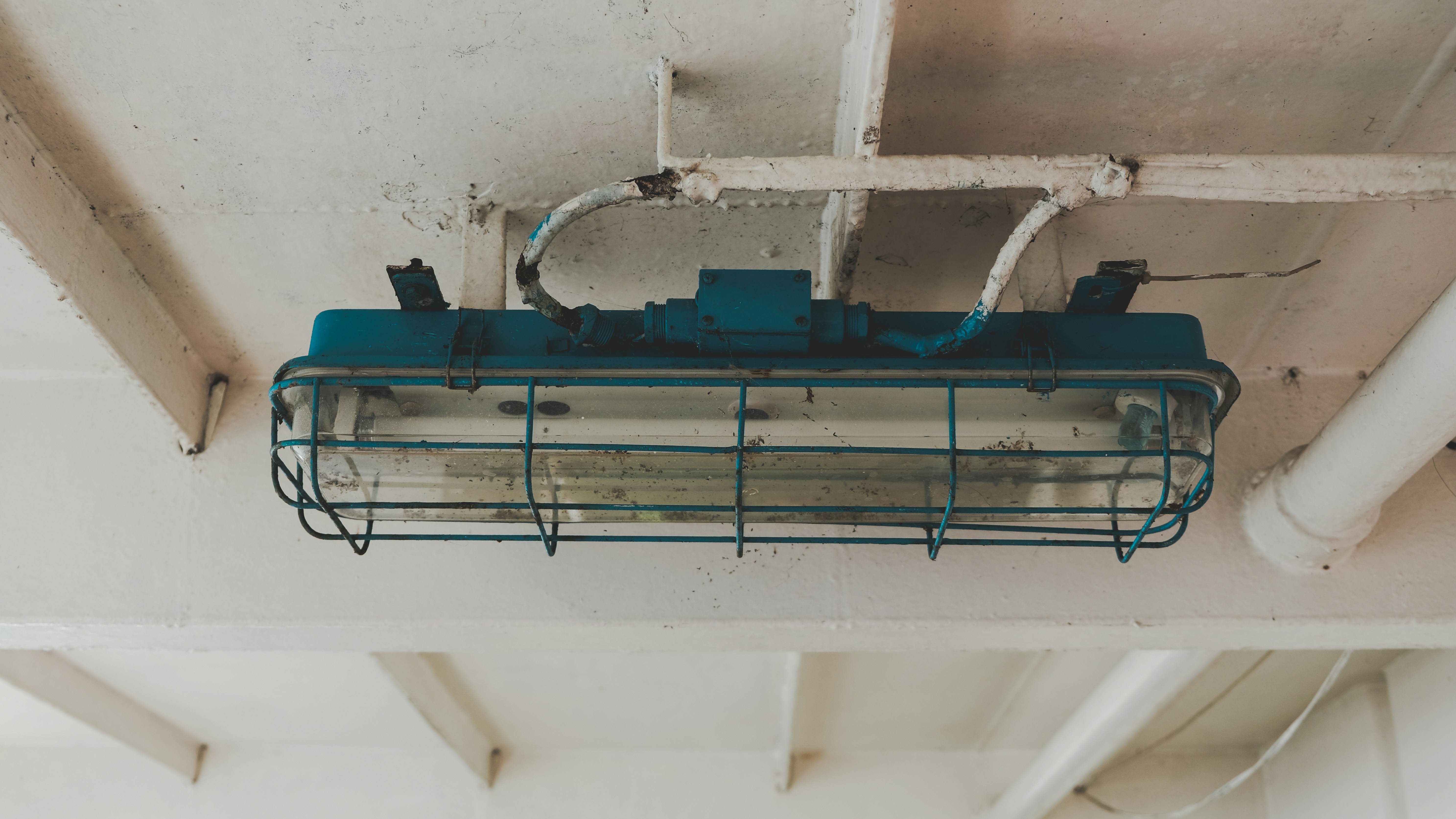

Are you looking to upgrade your garage, workshop, or utility room lighting? A fluorescent light fixture can provide bright, efficient illumination, and wiring one yourself is a rewarding DIY project that can save you money. With the right tools and a careful approach, you can successfully install or replace a fluorescent fixture, brightening your space with confidence.
Quick plan (TL;DR)
- Safety First: Turn off power at the breaker.
- Gather Gear: Assemble all necessary tools and materials.
- Mount Fixture: Choose location and securely fasten the fixture.
- Prepare Wires: Remove knockouts and strip insulation from wires.
- Connect Electrically: Follow wiring diagrams for proper hot, neutral, and ground connections.
- Secure & Cover: Neatly tuck wires and install the ballast cover.
- Install Tubes: Carefully insert fluorescent tubes.
- Test: Restore power and confirm functionality.
Before you start (scope, skill level, what can go wrong)
Wiring a fluorescent light fixture is a project accessible to DIYers with basic electrical understanding. This guide covers new installation or replacement where an electrical box is already present. It does not cover installing new circuits or running new wiring through walls, which typically require a licensed electrician and permits.
Consider your skill level: If unsure, consult or hire a qualified electrician. Your safety is paramount.
What can go wrong? Risks include electrical shock, fire from improper wiring, and a non-functional light. Improper grounding is hazardous. Always verify local electrical codes, as requirements vary significantly by location.
Tools & materials
Having everything on hand before you begin ensures a smoother and safer process.
Tools
- Voltage Tester (Non-Contact and/or Multimeter): Essential for confirming power is off.
- Wire Strippers: For safely removing insulation.
- Screwdriver Set (Phillips and Flathead):
- Pliers (Needle-nose and Lineman's): For bending and twisting wires.
- Utility Knife: For cutting insulation or opening packaging.
- Drill/Driver: For mounting the fixture.
- Measuring Tape & Pencil: For accurate placement.
- Ladder or Step Stool: For safe access.
- Personal Protective Equipment (PPE): Safety glasses and work gloves.
Materials
- New Fluorescent Light Fixture: Choose appropriate type (e.g., T8 or T12).
- Wire Nuts: For securing electrical connections.
- Electrical Tape: For added insulation (optional but recommended).
- Fluorescent Tubes: Ensure they match your fixture's specifications.
- Mounting Hardware: Often included; may need additional anchors.
- Junction Box: Only if installing a new circuit, which is beyond this guide's scope.
- Replacement Ballast (if keeping old fixture): Ensure compatibility.
Time, cost, and difficulty
- Time: Expect 1 to 3 hours for a typical installation or replacement, depending on experience and fixture complexity.
- Cost: Fixtures range from $30 to $150+. Basic tools might add $20-$50. Ballasts are typically $15-$40.
- Difficulty: Moderate. Requires careful attention to safety and basic electrical knowledge. Factors like working overhead or with older wiring can increase difficulty.
Step-by-step instructions
Follow these steps carefully for a safe and successful installation.
1. Safety First: Kill the Power!
This is the most critical step. Never work with live electrical circuits.
- Locate your home's main electrical panel (breaker box).
- Identify the circuit breaker for the fixture and flip it to "OFF".
- - [x] VERIFY POWER IS OFF: Use your non-contact voltage tester on each wire at the fixture. If it beeps or lights up, power is still on. DO NOT PROCEED until confirmed off.
- Rule of thumb: If you're unsure which breaker to use, turn off the main breaker to the entire house.
2. Plan Your Placement & Mount the Fixture
- If replacing an old fixture, remove it carefully, noting existing wiring.
- For new installations, hold the fixture in place, mark mounting points, ensuring it covers the junction box.
- Securely mount the fixture to the ceiling or wall using provided hardware or appropriate anchors.
3. Prepare the Wiring
- Open the fixture's wiring compartment. Remove a knockout hole for the electrical supply wires.
- Install a cable clamp into the knockout. Feed the electrical supply wires (black, white, bare copper/green) from your junction box through the clamp.
- Using wire strippers, expose about 1/2 to 3/4 inch of insulation from the ends of the house wires and the corresponding fixture wires. Always check the fixture's wiring diagram for exact color codes.
4. Make the Electrical Connections
Always refer to your fixture's specific wiring diagram.
- Ground: Connect the bare copper/green ground wire from the electrical supply to the fixture's green/bare copper ground wire (or ground screw). Twist clockwise, cap with a wire nut.
- Neutral: Connect the white (neutral) wire from the electrical supply to the fixture's white (neutral) wire. Twist clockwise, cap with a wire nut.
- Hot: Connect the black (hot) wire from the electrical supply to the fixture's black (or sometimes blue) hot wire. Twist clockwise, cap with a wire nut.
- Checkpoint: Gently tug on each wire connection to ensure security. Optionally, wrap each wire nut with electrical tape for extra insulation.
5. Secure the Wiring & Install Ballast Cover
- Carefully push all connected wires back into the fixture's wiring compartment, avoiding pinching.
- Install the ballast cover or any protective plates to shield the ballast and wiring.
6. Install Fluorescent Tubes
- Handle tubes by their ends. Insert the pins into the lampholders and twist a quarter turn to lock securely.
- Ensure all tubes are firmly seated.
7. Test the Fixture
- Return to your electrical panel and flip the circuit breaker back to "ON".
- Turn on the wall switch. Your new fluorescent light should illuminate.
8. Final Touches
- Clean up tools and packaging. Enjoy your new lighting!
Common mistakes to avoid
- Not killing power: Always verify power is off with a voltage tester.
- Improper wire stripping: Leads to exposed conductors or poor connections.
- Loose wire connections: Causes arcing, overheating, and fire risk. Tug test every connection.
- Ignoring the ground wire: Crucial for safety and shock prevention.
- Mismatched components: Using incompatible ballasts and tubes.
- Forgetting the ballast cover: Exposes live wires and components.
Troubleshooting
| Symptom | Likely Cause | Fix |
|---|---|---|
| Light doesn't turn on | No power, loose connection, bad tube/ballast | Check breaker, verify power with tester. Re-check all wire connections. Try a new tube. If persistent, ballast may be faulty. |
| Light flickers or hums | Loose tube, wrong tube type, failing ballast | Ensure tubes are firmly seated. Verify tubes are correct type for fixture/ballast. Ballast may be failing if persistent. |
| Tubes glow dimly/partially | Old/incorrect tubes, low voltage, faulty ballast | Replace tubes with new, compatible ones. Check voltage at fixture. Ballast or starter (if applicable) might be bad. |
| Circuit breaker trips | Short circuit, overloaded circuit, faulty fixture | Turn off power. Inspect wiring for bare wires touching. New fixture might be faulty. Consult an an electrician for persistent trips or if circuit overloaded. |
| Fixture clicks, no light | Failed starter (older fixtures), bad tube, cold temps | If older fixture, replace starter. Try new tubes. Ensure fixture is rated for ambient temperature if in cold environment. |
Safety notes
Working with electricity carries inherent risks. Prioritize your safety.
- Electrical Shock Hazard: ALWAYS turn off power at the breaker and verify with a voltage tester.
- Ladders: Use a sturdy, stable ladder. Have someone spot you if possible.
- Personal Protective Equipment (PPE): Wear safety glasses and work gloves.
- Manufacturer Instructions: Always follow the specific installation and safety instructions provided by the fixture manufacturer.
- Local Codes: Electrical work is subject to local building codes. Check with your local building department for specific requirements or permits. Consult a licensed electrician for complex installations or when in doubt.
- Wire Insulation: Never handle bare wires that you suspect are live. Ensure all connections are fully insulated.
FAQ
Q: Can I replace an old fluorescent fixture with an LED fixture? A: Yes, you can install a new LED fixture. You can also use "plug-and-play" LED tubes with existing ballasts (check compatibility) or "ballast-bypass" LED tubes that require re-wiring the fixture.
Q: What is a ballast, and why is it important? A: A ballast regulates current to fluorescent lamps, providing the necessary voltage to start the lamp and then limiting current for operation. Without it, tubes would draw too much current and burn out quickly.
Q: How long do fluorescent lights typically last? A: Fluorescent tubes last 10,000 to 20,000 hours. Ballasts typically last 50,000 to 70,000 hours.
Q: Do I need a permit to install a new light fixture? A: Requirements vary. Simple fixture replacement often doesn't need a permit. However, running new wiring or adding circuits usually does. Always check with your local building department.
Q: Can a renter perform this project? A: It depends on your lease agreement and local regulations. Many leases prohibit electrical modifications. Always consult your landlord first.
Q: What's the difference between T8 and T12 fluorescent tubes? A: T8 (1-inch diameter) and T12 (1.5-inch diameter) tubes are not interchangeable without also changing the ballast. T8s are generally more energy-efficient and offer better light quality than older T12s.
Sources & claims handling
All guidance provided is general information for educational purposes. Specific product instructions, local codes, and safety standards must always take precedence. Please consult the following reputable sources for definitive information:
- UL (Underwriters Laboratories)
- National Electrical Code (NEC)
- NFPA (National Fire Protection Association)
- Local Building Department
- Manufacturer's Installation Manuals
- OSHA (Occupational Safety and Health Administration)
Successfully wiring a fluorescent light fixture is a fulfilling project that enhances your home with practical, bright light. By prioritizing safety, understanding the steps, and paying close attention to details, you can confidently complete this upgrade. Always remember to double-check your work and, when in doubt, seek professional assistance. Enjoy your newly illuminated space!
